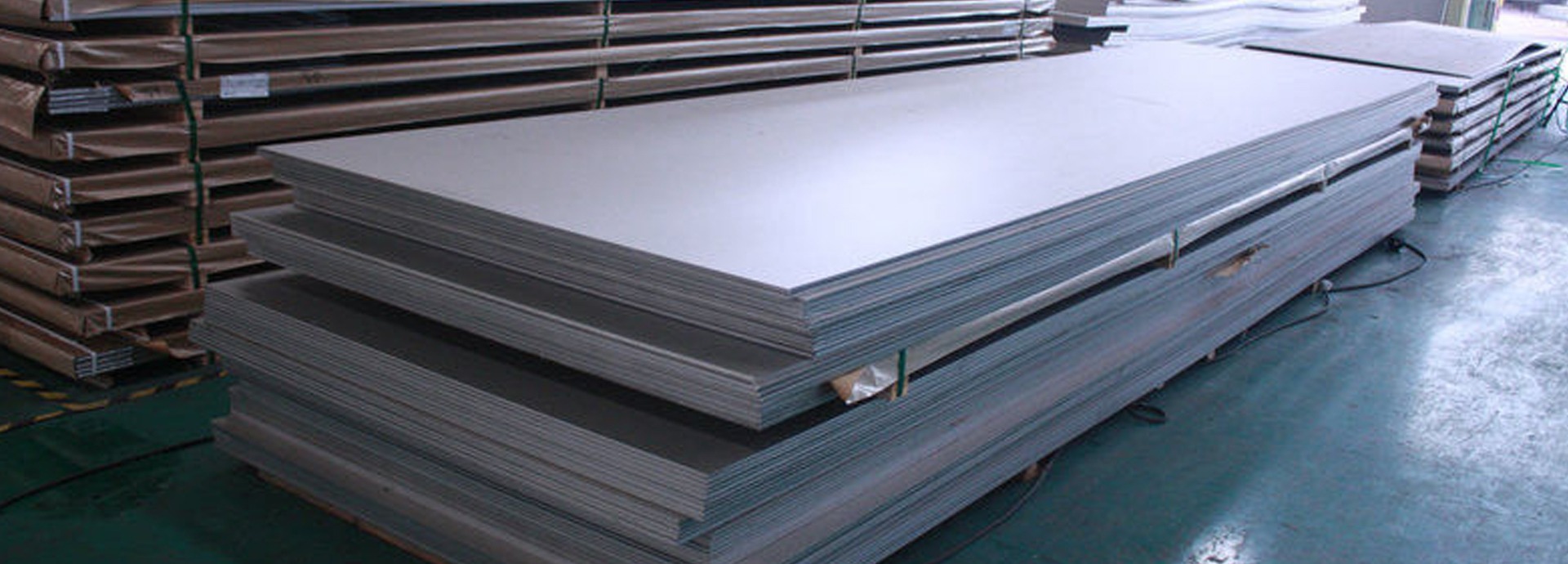

Stainless Steel 316Ti Sheets & Plates
SS 316Ti is an austenitic stainless steel grade. At Sankalp Alloys Overseas, we manufacture 316Ti Stainless Steel Sheets in a chemical concentration of 16% chromium and 10% nickel, combined with an increment of 2-3% molybdenum. This vigorous composition imparts more excellent resistance to corrosion and oxidation in varied stress-induced environments to the 316Ti Stainless Steel Sheets. The low carbon content of the SS 316Ti Sheet enhances its tolerance to carbide precipitation. The said alloying and properties make these modules easily weldable without requiring additional treatment post-welding.
Stainless Steel 316Ti Sheets & Plates Manufacturers, Stainless Steel 316Ti Sheets & Plates Suppliers, Stainless Steel 316Ti Sheets & Plates Stockists, Stainless Steel 316Ti Sheets & Plates Exporters
Stainless Steel 316Ti Sheets & Plates Manufacturers in India, Stainless Steel 316Ti Sheets & Plates Suppliers in India, Stainless Steel 316Ti Sheets & Plates Stockists in India, Stainless Steel 316Ti Sheets & Plates Exporters in India
The high content of molybdenum in stainless steel 316Ti plates contributes to excellent resistance to pitting by chlorides in marine systems. On the other hand, the austenitic structure of the SS 316Ti Plate lags in keeping excellent toughness, both at raised and cryogenic temperatures.
As compared to other austenitic grades of plates, a 316Ti Stainless Steel Plate shows higher creep, tensile strength, and stress rupture properties at higher temperatures. Though it tends to work harden quickly if machined rapidly, maintaining low speeds and constant feed rates is necessary.
The 316Ti Stainless Plate can be hot rolled under very high temperatures from 1150 to 1260 degrees Celsius. Successively, they can be cold-rolled for better characteristics and properties. They do not react to any kind of heat-hardening procedures. The 316Ti Stainless Plate Price is based on several factors involving the demand and logistics in different locations.
Sankalp Alloys Overseas guarantees that our 316Ti Stainless Steel Sheets and Plates have the best quality to give our clients the best performance and durability for many industrial applications. So, we are one of the reliable Manufacturers, Suppliers, Stockists, and Exporters with commendable services and incomparable products to our clientele.
Stainless Steel 316Ti Sheets & Plates Manufacturers in Mumbai, Stainless Steel 316Ti Sheets & Plates Suppliers in Mumbai, Stainless Steel 316Ti Sheets & Plates Stockists in Mumbai, Stainless Steel 316Ti Sheets & Plates Exporters in Mumbai
316Ti Stainless Steel Sheets & Plates Equivalent Grades
| STANDARD | UNS | WNR. | AFNOR | EN | JIS | BS | GOST |
|---|---|---|---|---|---|---|---|
| SS 316Ti | S316Ti00 | 1.4401 / 1.4436 | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 | SUS 316Ti | 316TiS31 / 316TiS33 | - |
Specification of Stainless Steel 316Ti Sheets & Plates
Stainless Steel Sheets & Plates Specification : ASTM A240 / ASME SA240
Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Surface Finishing : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.
Chemical Alloyion of Stainless Steel 316Ti Sheets & Plates
| C | Mn | Si | P | S | Cr | Mo | Ni | N | |
|---|---|---|---|---|---|---|---|---|---|
| 316Ti (S316Ti00) |
0.08 max |
2.0 max |
0.75 max |
0.045 max |
0.03 max |
min: 16.0 max: 18.0 |
min: 2.0 max: 3.0 |
min: 10.0 max: 14.0 |
0.10 max |
Mechanical Properties Of Stainless Steel 316Ti Sheets & Plates
| Grade | Tensile Strength ksi (min) |
Yield Strength 0.2% ksi (min) |
Elongation % | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
|---|---|---|---|---|---|
| 316Ti (S316Ti00) |
75 | 30 | 40 | 217 | 95 |
