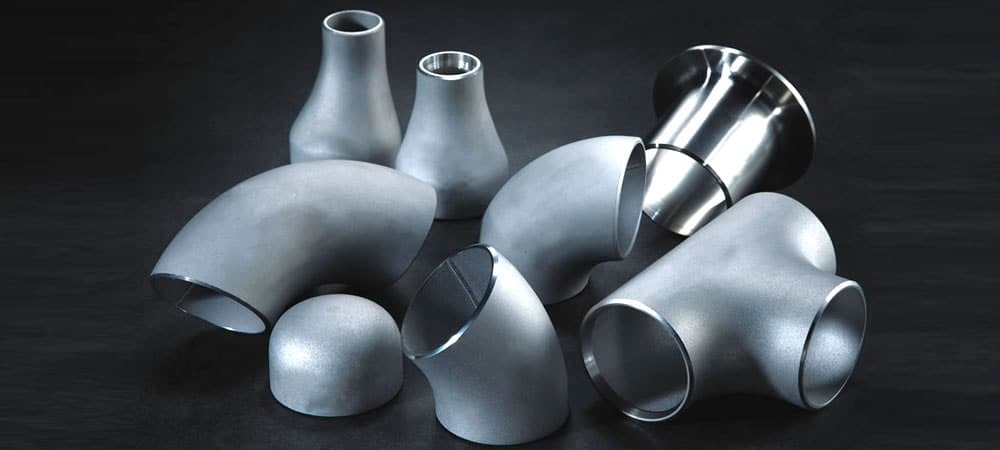

Stainless Steel 347 Pipe Fittings
Sankalp Alloys Overseas is one of the prime and renowned manufacturers, suppliers, exporters, and stockists of Stainless Steel 347 Pipe Fittings Manufactured from superior raw materials, our SS 347 Pipe Fittings are designed to be more durable and effective. We take special care in the packaging of fittings so that they reach our clients and distributors in safe condition.
The SS 347 pipe fittings make use of a varying composition of elements in the fittings, which include carbon, nickel, silicon, sulfur, manganese, chromium, phosphorus, cobalt, titanium, and molybdenum. These fittings are designed to have an exact composition so that it gets perfect hardness and strength for the fittings. Some of the key properties that are focused on at the time of manufacturing are application, resistance, end type, environmental condition, dimensional accuracy, surface finish, and tensile strength.
Stainless Steel 347 Pipe Fittings Manufacturers, Stainless Steel 347 Pipe Fittings Suppliers, Stainless Steel 347 Pipe Fittings Stockists, Stainless Steel 347 Pipe Fittings Exporters
Stainless Steel 347 Pipe Fittings Manufacturers in India, Stainless Steel 347 Pipe Fittings Suppliers in India, Stainless Steel 347 Pipe Fittings Stockists in India, Stainless Steel 347 Pipe Fittings Exporters in India
The outstanding physical and mechanical properties of SS 347 Pipe Fittings make them suitable to deal with alloys. A few of the characteristic properties are as follows: thermal conductivity, electrical resistivity, melting point, density, tensile strength, yield strength, elongation, and resilience. It can be provided in a variety of types like ERW, Seamless, Welded, Fabricated, and EFW to work under different industrial applications.
These SS 347 Pipe Fittings find their uses in various industries and applications, including offshore oil drilling, pharmaceuticals, petrochemicals, heat exchangers, plumbing, water supply systems, condensers, transportation, the paper industry, specialty chemicals, industrial machinery, and power generation plants; they are also specifically used in such areas as gas processing, food processing, aerospace, seawater equipment, fertilizer production, and many more.
It is designed to operate under the most extreme conditions, and SS 347 Pipe Fittings perform well when such situations arise. They will be more applicable in high-temperature applications because of their excellent properties. The fittings are resistant to several different forms of corrosion, including stress corrosion cracking, intergranular corrosion, pitting, and crevice corrosion. Sankalp Alloys Overseas is committed to the delivery of top-grade quality SS 347 Pipe Fittings that cater to the varied need of our clients.
Stainless Steel 347 Pipe Fittings Manufacturers in Mumbai, Stainless Steel 347 Pipe Fittings Suppliers in Mumbai, Stainless Steel 347 Pipe Fittings Stockists in Mumbai, Stainless Steel 347 Pipe Fittings Exporters in Mumbai
347 Stainless Steel Pipe Fittings Equivalent Grades
| STANDARD | UNS | WNR. | JIS | EN |
|---|---|---|---|---|
| SS 347 | S34700 | 1.4550 | SUS 347 | X6CrNiNb18-10 |
| SS 347H | S34709 | 1.4961 | SUS 347H | X6CrNiNb18-12 |
Specification of Stainless Steel 347 Pipe Fittings
Stainless Steel Pipe Fittings Specification : ASTM A182 / ASME SA182
Dimension Standard : ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799
Size : 1/8" NB to 4" NB
Type : Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type)
Rating Pressure : Threaded End - 2000 /3000/ 6000 LBS.
Socket-weld End - 3000 / 6000/ 9000 LBS.
Chemical Alloyion of Stainless Steel 347 Pipe Fittings
| C | Cr | Mn | Ni | P | S | Si | Cb/Ta | |
|---|---|---|---|---|---|---|---|---|
| 347 | 0.08 max |
min: 17.0 max: 20.0 |
2.0 max |
min: 9.0 max: 13.0 |
0.04 max |
0.30 max |
0.75 max |
min:10x C max: 1.0 |
| 347H |
min: 0.04 max: 0.10 |
min: 17.0 max: 20.0 |
2.0 max | min: 9.0 max: 13.0 |
0.03 max | 0.30 max |
0.75 max |
min:10x C max: 1.0 |
Mechanical Properties Of Stainless Steel 347 Pipe Fittings
| Grade | Tensile Strength ksi (MPa) min | Yield Strength 0.2% ksi offset ksi (MPa) min | Elongation (% in 50mm) min | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
|---|---|---|---|---|---|
| 347 |
75 (515) |
30 (205) |
40 | 201 | 95 |
Physical Properties of 347 Stainless Steel Pipe Fittings
| Denstiy lbm/in3 |
Coefficient of Thermal Expansion (min/in)-°F |
Thermal Conductivity BTU/hr-ft-°F | Specific Heat BTU/lbm -°F | Modules of Elasticity (annealed)2-psi | |
|---|---|---|---|---|---|
| at 68 °F | at 68 – 212°F | at 68 – 1832°F | at 200°F | at 32 – 212°F | in tension (E) |
| 0.286 | 9.2 | 20.5 | 9.3 | 0.12 | 28 x 106 |
