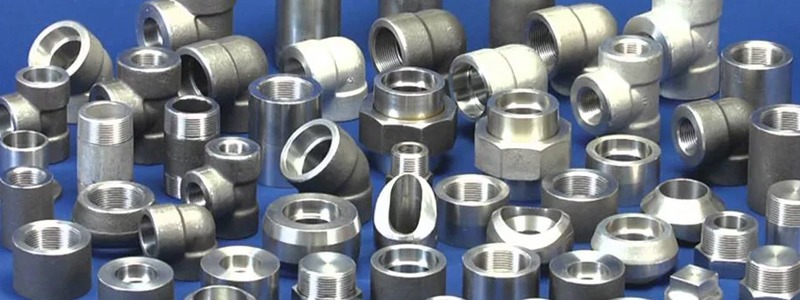

Another kind of made fittings is the made tees which are connected with the 90 levels of the lines. Also, there are produced laterals, made plug, bushings, couplings, and others. The couplings are other than used in the half and full turn of events. This is the means by which they are used in present day applications.
The SS 321 and 321H is the austenitic grade of treated steel which is used in the development of the shaped fittings which are there with the high temperature of the applications. Besides, this is the way that the SS 321/321H Pipe Fitting is having various properties with which they are working in the general applications. A piece of the properties which are there with the made fittings are exceptional adaptability, energy, high unbending nature, unprecedented strength, and security in the raised temperatures.
The undertakings which are using the kind of framed fittings are petrochemical, medications, oil and gas, pound and paper, and others. This is the way that the applications in the endeavors are working easily.
321/321H Stainless Steel Pipe Fitting Equivalent Grades
STANDARD | UNS | WNR. | JIS | EN |
---|---|---|---|---|
SS 321 | S32100 | 1.4541 | SUS 321 | X6CrNiTi18-10 |
SS 321H | S32109 | 1.4878 | SUS 321H | X12CrNiTi18-9 |
Specification of Stainless Steel 321/321H Pipe Fitting
Stainless Steel Pipe Fitting Specification : ASTM A182 / ASME SA182
Dimension Standard : ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799
Size : 1/8" NB to 4" NB
Type : Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type)
Rating Pressure : Threaded End - 2000 /3000/ 6000 LBS.
Socket-weld End - 3000 / 6000/ 9000 LBS.
Chemical Composition of Stainless Steel 321/321H Pipe Fitting
% | Cr | Ni | C | Si | Mn | P | S | N | Ti | Fe |
---|---|---|---|---|---|---|---|---|---|---|
321 | min:17.0 max:19.0 |
min: 9.0 max:12.0 |
max:0.08 | max:0.75 | max:2.0 | max:0.045 | max:0.03 | max:0.10 | min:5*(C+N) max:0.70 |
Balance |
321H | min:17.0 max:19.0 |
min: 9.0 max:12.0 |
min:0.04 max:0.10 |
min:18.0 max:20.0 |
max:2.0 | max:0.045 | max:0.03 | max:0.10 | min:5*(C+N) max:0.70 |
Balance |
Mechanical Properties Of Stainless Steel 321/321H Pipe Fitting
Grade | Tensile Strength ksi (min.) |
Yield Strength 0.2% Offset ksi (min.) |
Elongation - % in 50 mm (min.) |
Hardness (Brinell) MAX |
---|---|---|---|---|
321/321H | 75 | 30 | 40 | 217 |
Physical Properties of 321/321H Stainless Steel Pipe Fitting
Denstiy lbm/in3 |
Coefficient of Thermal Expansion (min/in)-°F |
Thermal Conductivity BTU/hr-ft-°F | Specific Heat BTU/lbm -°F | Modules of Elasticity (annealed)2-psi | |
---|---|---|---|---|---|
at 68 °F | at 68 – 212°F | at 68 – 1832°F | at 200°F | at 32 – 212°F | in tension (E) |
0.286 | 9.2 | 20.5 | 9.3 | 0.12 | 28 x 106 |
