Standard Specification For SMO 254 ASTM A182 Forged Pipe Fittings
Specifications : ASTM A182 & ASME SA182
Standard : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size : 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type : Socketweld Fittings, Screwed-Threaded Fittings
Threaded and Socket Weld Pipe Fittings
Products | Size | |
---|---|---|
ASTM A182 SMO 254 90° Elbows | ASTM A182 SMO 254 45° Elbows | Sizes 1/8″– 4″ Pressure Ratings – 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
ASTM A182 SMO 254 Forged Caps | ASTM A182 SMO 254 Couplings | |
ASTM A182 SMO 254 Forged Tees | ASTM A182 SMO 254 Unions | |
ASTM A182 SMO 254 Forged Cross | ASTM A182 SMO 254 Inserts | |
ASTM A182 SMO 254 Forged Plug | ASTM A182 SMO 254 Street Elbows | |
ASTM A182 SMO 254 Bushings | ASTM A182 SMO 254 Pipe Nipple |
SMO 254 Forged Fittings Standards / Types And Pressure Class :
ASTM A182 - ASME SA182 | Standard Specification for SMO 254 Piping Fittings |
---|---|
ASME B16.11 | Socket Welding and Threaded Forged Fittings |
MSS SP-43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
MSS SP-95 | Swage(d) Nipples and Bull Plugs |
BS3799 | Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry |
STANDARD | WERKSTOFF NR. | UNS | JIS | SIS | GOST | AFNOR | EN |
---|---|---|---|---|---|---|---|
SMO 254 | 1.4547 | S31254 | - | 2378 | - | Z1 CNDU 20.18.06Az | X1CrNiMoCuN20-18-7 |
Grade | % | Ni | Cr | Mo | Cu | N | C | Mn | Si | P | S |
SMO 254 | Min. | 17.5 | 19.5 | 6 | 0.5 | 0.18 | - | - | - | - | - |
Max. | 18.5 | 20.5 | 6.5 | 1 | 0.22 | 0.02 | 1 | 0.8 | 0.03 | 0.01 |
Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
---|---|---|---|---|---|
SMO 254 | 8.0 g/cm3 | 1320-1390 ℃ | 650 | 300 | 35 % |

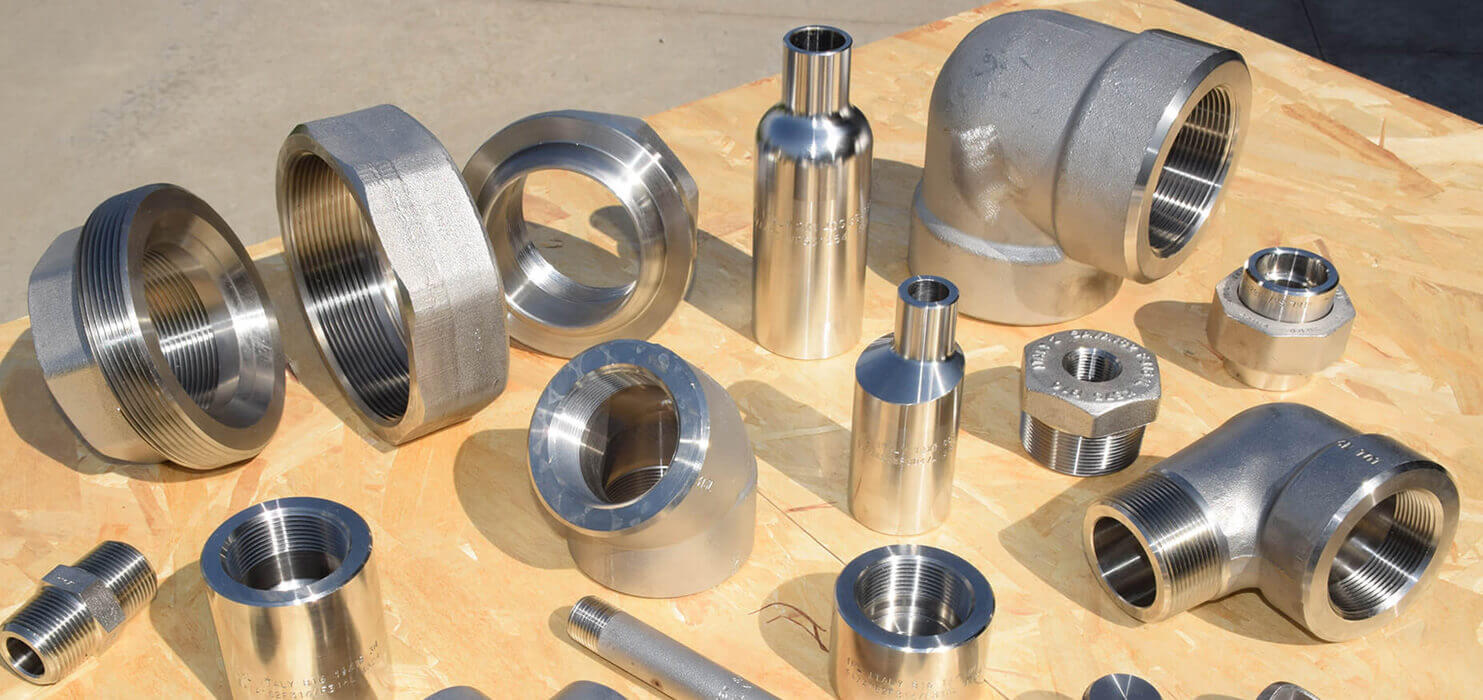

SMO 254 Forged Pipe Fittings | SMO 254 High Pressure Forged Fittings |
---|---|
254 SMO Socket Weld Fittings | SMO 254 Threaded Fittings |
SMO UNS S31254 Socket Weld 90 Deg Elbow | 254 SMO Threaded 90 Deg Elbow |
SMO 254 Socket Weld 45 Degree Elbow Suppliers | ANSI SMO 254 Screwed 45 Degree Elbow |
SMO 254 Forged Tee Dealer | 254 SMO Threaded Tee Exporter |
SMO DIN 1.4547 Socket Weld Cross Stockholder | SMO 254 Threaded / Screwed Cross Distributors |
SMO 254 Socket Weld Half Coupling | SMO 254 Threaded Half Coupling Manufacturer |
SMO 254 / 6Mo Full Coupling | SMO 254 / 6 Mo Coupling |
SMO 254 Socket Weld Cap | SMO 254 / 6 Mo Screwed Cap |
ANSI B16.11 SMO 254 Socket Weld Union | SMO 254 Threaded / Screwed Union Stockist |
ASTM A182 SMO 254 Screwed Hex Plug | ASME SA182 SMO 254 Square Plug |
SMO 254 Reducing Tee | SMO 254 Threaded / Screwed Bushing |
A182 SMO 254 Hex Nipples | ASME SA182M SMO 254 Swage Nipple |
254 SMO Threaded Street Elbow | SMO 254 Threaded / Screwed Pipe Nipple |
SMO 254 Socket weld Unequal Tee | SMO 254 ASME B16.11 Threaded Unequal Tee |
