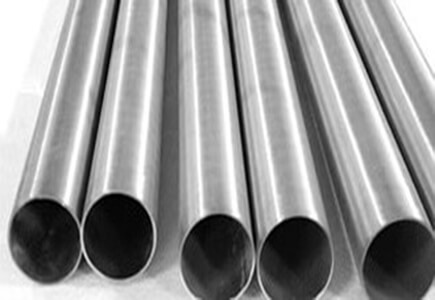

Inconel 600 Tubes are high in strength and offer resistance to corrosion and critical properties in a wide range of engineering projects. These tubes have performed very well in petrochemical plants by operating in high-temperature environments independent of either strength or reactivity. Apart from that, oil refineries and nuclear power plants also operate with equally effective tubes with strong and long-lasting piping solutions. The DIN 2.4816 Inconel Pipe finds use in aerospace due to its tolerance to harsh conditions. The tubes are also used in the automobile industry, mainly dealing with exhaust systems and turbochargers, where excellent qualities are attributed to them.
The principal advantage of using Inconel 600 Pipes is that they are solid, even under significantly soaring temperatures and under contact with corrosive substances like acids or alkaline solutions. This makes them even more challenging, and in such conditions, ordinary metals would lose the fight due to corrosion or thermal stress cracking. Consequently, wear resistance is the characteristic of very high quality inherent in these Inconel UNS N06600 Pipes due to a high content of alloys, making them durable compared to other metals, like stainless steel or copper alloys. They can be easily set in shapes during manufacturing without losing their mechanical properties, which makes them versatile for fabricating anything in a custom-fabricated project.
Inconel 600 Pipes & Tubes contain a nickel-chromium-iron composition with excellent resistance to corrosion, high-temperature sustainability, and high strength. Hence, it can undergo heat treatment related to exothermic applications around 2000°F. With high mechanical strength, Inconel 600 materials are excellent not only in workability but also in good weldability to become one of the favorite materials for many industrial applications.
Specifications | : | ASTM B 167 ASME SB 167 / ASTM B 829 ASME SB 829 / ASTM B 517 ASME SB 517 |
Dimensions | : | ASTM, ASME and API |
Seamless 600 Pipes | : | 4 to 219mm W. T.: 0.5 to 20mm |
Welded 600 Pipes | : | 5.0 mm – 1219.2 mm |
EFW 600 Pipes | : | 5.0 mm – 1219.2 mm |
Size | : | 15″NB TO 150″NB IN |
Specialized in | : | Large Diameter Size |
Schedule | : | SCH5, SCH10, SCH40, STD, SCH80, SCH160 |
Type | : | Seamless / ERW / Welded / Fabricated / LSAW Pipes |
Form | : | Round, Hydraulic Etc |
Length | : | Single Random, Double Random & Cut Length. |
End | : | Plain End, Beveled End, Treaded |
Grade | UNS No | Old British | Euronorm | GOST | Japanese JIS | ||
BS | En | No | AFNOR | ||||
Inconel 600 | N06600 | NA 13 | NiCr15Fe | 2.4816 | NC15FE11M | МНЖМц 28-2,5-1,5 | NCF 600 |
Grade | C | Mn | Si | Fe | S | Cr | Cu | Ni | |
600 | min. | – | – | – | 6.0 | – | 14.0 | – | 72.0 |
max. | 0.15 | 1.0 | 0.5 | 10.0 | 0.015 | 17.0 | 0.5 | – |
Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
Rockwell B (HR B) max | Brinell (HB) max | ||||
600 | Psi – 95,000 , MPa -655 | Psi – 45,000 , MPa – 310 | 40 | – | – |
